Hot Water Returning Sterilizer(Auto Clave)

The hot water tank and the sterilization tank are the first pressure vessels, which are manufactured, tested and accepted according to the national standard GB150-1998 "Steel Pressure Vessel" and the former Ministry of Labor "Pressure Vessel Safety Technology Supervision Regulations".

Key words:

Hot Water Returning Sterilizer(Auto Clave)

Key words:

  • DESCRIPTION
    • Commodity name: Hot Water Returning Sterilizer(Auto Clave)

    The hot water tank and the sterilization tank are the first pressure vessels, which are manufactured, tested and accepted according to the national standard GB150-1998 "Steel Pressure Vessel" and the former Ministry of Labor "Pressure Vessel Safety Technology Supervision Regulations".

    Specifications and inspection data followed by manufacturing
    The hot water tank and the sterilization tank are the first pressure vessels, which are manufactured, tested and accepted according to the national standard GB150-1998 "Steel Pressure Vessel" and the former Ministry of Labor "Pressure Vessel Safety Technology Supervision Regulations".
    Welding is carried out according to JB/T4709-92 "Steel Pressure Vessel Welding Procedure", and the radio graphic inspection conforms to the third level of JB4730-94.


    Design parameters:
    Hot water tank Design pressure: 0.35MPA Working pressure: <0.3MPA

    Design temperature: 147 ° C Operating temperature: < 135 ° C

    Sterilization tank Design pressure: 0.35MPA Working pressure: <0.3MPA

    Design temperature: 147 ° C Operating temperature: < 135 ° C


    Main technical specifications:
    1) Material: SUS304 stainless steel.
    2) One tray one, one hot water tank, one sterilization pots, that is, the hot water tank is used to store the preheated water when the first work of each shift and the hot water after the sterilization is recovered for reuse.
    3) Steam heating, automatic temperature control and random adjustment between normal temperature and 135 °C.
    4) The pressure in the sterilizer is automatically adjustable according to the temperature, especially when the sterilization is finished. When cooling, the device has an automatic pressure compensation function.
    5) PLC touch screen control memory dozens of process programs are easy and simple to operate.
    6) The sterilization pot is equipped with a safety protection device, and the pot door cannot be opened before the pressure in the pot is completely discharged.

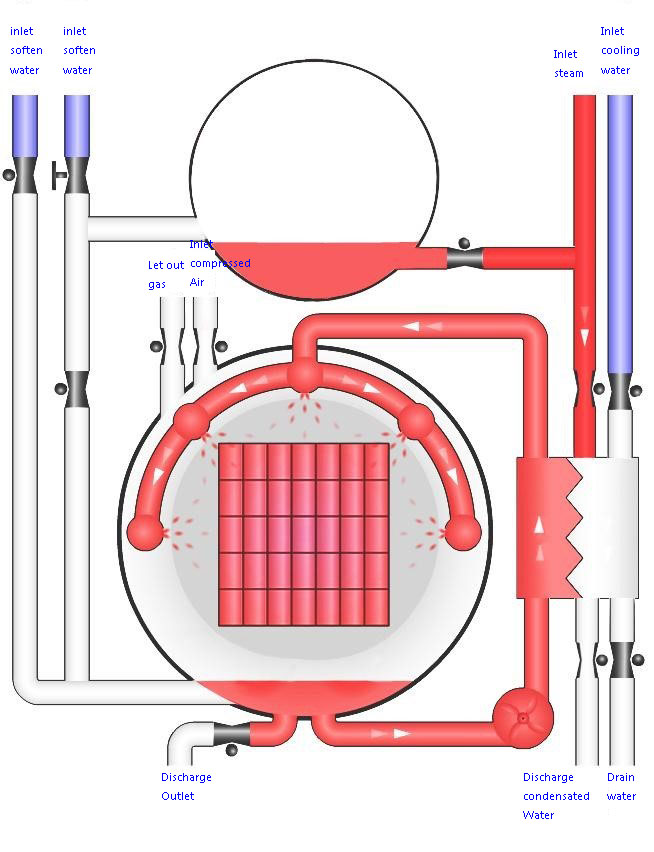

    7) The water inlet type sterilization pot adopts the upper and lower water inlet mode. When the sterilization, the hot water in the pot is from top to bottom, the steam is from bottom to top, and the sterilization temperature is evenly distributed.

    Name/unit/model RSS-720
    Diameter of sterilizing pot 1100mm
    Length of sterilizing pot 2400mm
    Number of sterilizing basket 2
    Work puessure ≥0.35mpa
    Sterilizing temperature ≤135℃
    Heating steam pressure ≥0.6mpa
    Hot water recycling spraying volume 15t/h
    Condesed air pressure 0.7map

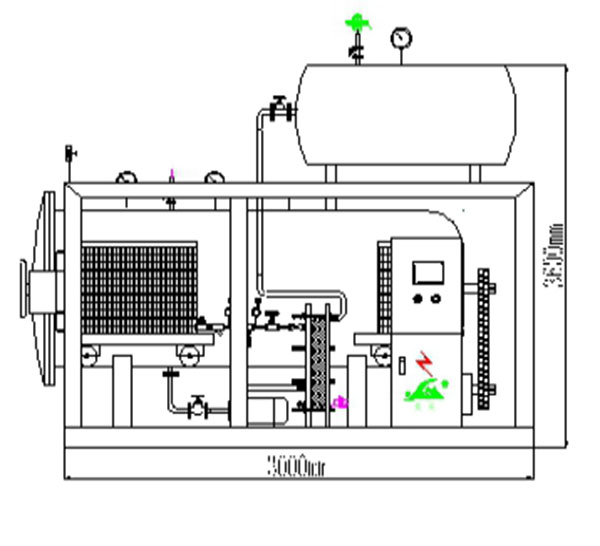

    Size 3000×2200×3600mm



    Terms and Conditions

    Price Validity
    Our price are valid for a period of 20days. After this term,we reserve the right to revise our price.

    Terms of delivery
    40-90days after receipt of down payment and all technical and commercial details have been agreed upon.

    Price Basis
    FOB Shanghai including seaworthy packing, according to INCOTERMS 2000

    Terms of Payment
    Payment term: 40% down payment by telegraphic transfer within 7days upon the signing of the contract, the balance paid by telegraphic transfer or LC prior to shipping date from our company

    After sale service
    The equipment certificates will be distributed to our customer as well as the users' instruction booklet, which ensures the correct and safe installation.
    Our professional engineer staffs will guide the installation procedure and also useful training programs.

    Guarantee
    JIMEI guarantees the aforementioned products against possible defects of materials and /or workmanship for a period of 12 months beginning from the date of installation.In particular, JIMEI will repair and /or substitute the defective parts at its own expense,provided the purchaser gives timely written notice within 15 days from the discovery of the defect,and however within the aforesaid maximum 12months’ period.
